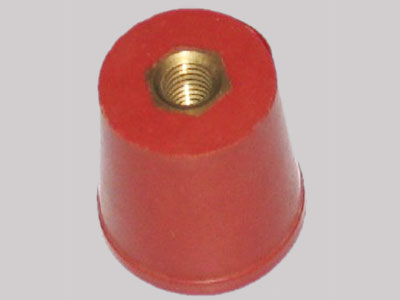

Busbar Insulators

	A	B	C	D	Insert*	F1	F2	T	P
H400632	40	25	32	10	M6	350	575	2.5	650
H400832	40	25	32	10	M8	350	600	5.25	700
H400641	40	34	41	10	M6	375	625	2.1	700
H400841	40	34	41	10	M8	425	710	5.25	800
H401041	40	34	41	10	M10	450	800	6	1100

H450841	45	29	41	10	M8	450	850	8	800
H451041	45	29	41	10	M10	475	900	9	1150
H450841	45	34	41	10	M8	425	900	6.5	900
H451041	45	34	41	10	M10	500	1000	9	1100
H451050	45	40	50	10	M10	550	1250	10.01	1350

	A	B	C	D	Insert*	F1	F2	T	P
H250525	25	20	25	6	M5	150	375	1.5	450
H250625	25	20	25	6	M6	175	400	1.75	523

H300532	30	24	32	8	M5	200	500	1.5	575
H300632	30	24	32	8	M6	800	625	1.75	650

H350632	35	25	32	9	M6	325	650	2	700
H350832	35	25	32	9	M8	350	650	4.5	810
H350841	35	29	41	9	M8	400	710	5.5	850
H351014	35	29	41	9	M10	400	700	6.5	900

	A	B	C	D	Insert*	F1	F2	T	P
H500841	50	31	41	10	M8	500	1050	8	1100
H501041	50	31	41	10	M10	550	1100	9	1250
H501241	50	31	41	10	M12	625	1250	11	1375

H601055	60	39	55	11	M10	650	1320	11.5	1450
H601255	60	39	55	11	M12	700	1400	12	1550

H751265	75	50	65	15	M12	725	1600	12	1700
H751665	75	50	65	15	M16	725	1800	12	1200

Product Code	Dimension			Force
	A	B	Insert*	F1	F2	T	P

R3006	30	30	M6	300	600	1.5	500
R3008	30	30	M8	375	700	4.5	600

R4008	40	40	M8	400	800	5.2	750
R4010	40	40	M10	500	1000	7	825

R5008	50	40	M8	450	800	5.5	900
R5010	50	40	M10	475	950	8.5	1150
R5012	50	40	M12	600	1150	10	1200

R6010	60	50	M10	650	1650	11	1350
R6012	60	50	M12	650	2000	12	1500

R6310	63	25	M10	350	650	9	750

Product Code	Dimension				Force
	A	B	C	Insert*	F1	F2	T	P

C3006	30	26	30	M6	225	400	2.5	600
C3008	30	26	30	M8	275	550	6	725

C4008	40	33	40	M8	375	600	6	750
C4010	40	33	40	M10	400	750	7.5	850

C5010	50	41	50	M10	500	850	8	1000
C5012	50	41	50	M12	550	900	9	1200

C6010	60	43	60	M10	600	1200	9	1400
C6012	60	43	60	M12	600	1350	10	1550

Product Code	Dimension					Force
	A	B	C	D	Insert*	F1	F2	T	P

DS3506	35	26	32	8	M6	300	400	2.5	600
DS3508	35	26	32	8	M8	350	500	5	800

DS5108	51	29	36	13	M8	425	600	6	950
DS5110	51	29	36	13	M10	400	700	9	1350

DS7610	76	35	50	16	M10	675	1200	10.5	1650
DS7612	76	35	50	16	M12	700	1300	11.5	1800

Product Code	Dimension					Force
	A	B	Insert*	F1	F2	T	P

HEX2506	25	25	M6	280	300	2.5	600

HEX3506	35	35	M6	400	750	2.5	800
HEX3508	35	35	M8	450	800	5.5	950

HEX4508	45	45	M8	500	850	6	1000
HEX4510	45	45	M10	600	1000	11	1150

HEX6010	60	60	M10	750	1350	12	1850
HEX6012	60	60	M12	800	1400	>12	2000
